產品描述

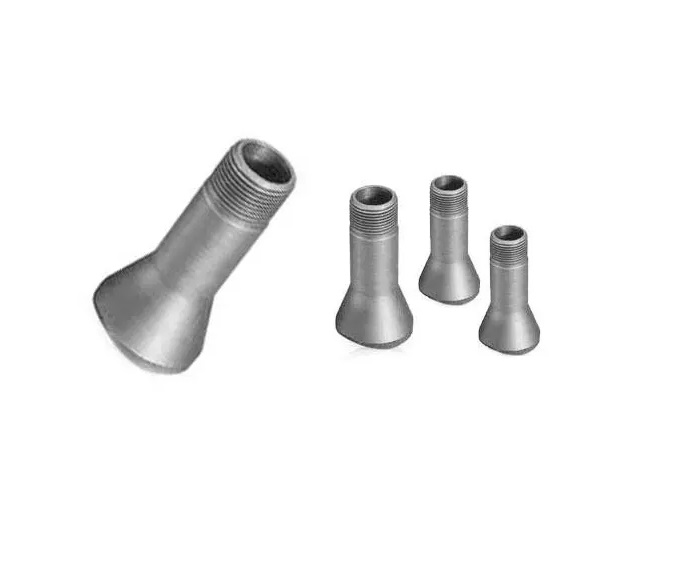

| Nipolet Specification: | |||
| Size/尺寸 | 1/2" NPS TO 2" NPS | ||
| Class/壓力等級 | 3000LB, 6000LB, (STD, SCH80/XS, SCH160) | ||

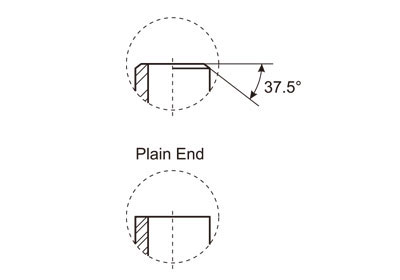

| Type/連接形式 | Buttweld/對焊、Plain/平端、Threaded/螺紋 | ||
| Surface Treatment/表面處理 | Hot Dipped Galvanizing, Epoxy & FBE Coating, Electro Polish, Sand Blasting, Soldering熱浸鍍鋅，環氧樹脂和FBE涂層，電拋光，噴砂，發黑 | ||
| Materal/材質 | Stainless Steel, Alloy Steel, Duplex, Nickel Alloys, Low temperature Steel, Carbon Steel, Cupro Nickel不銹鋼、合金鋼、雙相鋼、低溫鋼、碳鋼、鎳基合金 | ||
| Manufacturing process/制造工藝 | Cutting, Heat treatment, Forging, Machining | ||
| 鋸切、熱處理、模鍛、機加工 | |||
| Manufacturing Standards/制造標準 | MSS SP-97 | ||
| Nipolet Material Grades: | |||
| Stainless Steel/不銹鋼 | ASTM A 182F304, F304L, F304H, F316, F316L, F316Ti, F310, F310S, F321, F321H, F317, F347, F347H, F904L | ||
| Duplex & Super Duplex Steel/雙相鋼 | ASTM A 182 – F51, F53, F55, S31803, S32205, S32550, S31254, SMO254, S32750, S32760, S32950. | ||
| Carbon Steel/碳鋼 | ASTM/ ASME A 105, ASTM/ ASME A 350 LF 2 | ||
| Alloy Steel/合金鋼 | ASTM / ASME A 182, ASTM / ASME F5, F9, F11,F22, F 91 | ||
| Copper Alloy Steel/銅合金 | Copper Alloy Steel Forged Threaded 90 Deg Elbow : ASTM / ASME SB 111 UNS NO. C 10100 , C 10200 , C 10300 , C 10800 , C 12000, C 12200, C 70600 C 71500, ASTM / ASME SB 466 UNS NO. C 70600 ( CU -NI- 90/10) , C 71500 ( CU -NI- 70/30) | ||
| Nickel Alloy/鎳合金 | ASTM / ASME SB 336, ASTM / ASME SB 564 / 160 / 163 / 472, UNS 2200 (NICKEL 200) , UNS 2201 (NICKEL 201 ) , UNS 4400 (MONEL 400 ) , UNS 8020 ( ALLOY 20 / 20 CB 3 ) , UNS 8825 INCONEL (825) , UNS 6600 (INCONEL 600 ) , UNS 6601 (INCONEL 601) , UNS 6625 (INCONEL 625) , UNS 10276 (HASTELLOY C 276) | ||

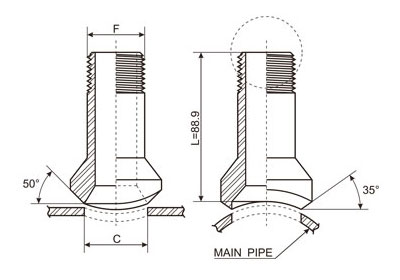

| Nipolet Dimesions: | |||
| Nipolet Dimesions Table : | |||
  |
|||
| Outlet Pipe | C | F | |
| 3000lb | 6000lb | ||
| 1/2" | 23.8 | 13.8 | 21.3 |
| 3/4" | 30.2 | 18.9 | 26.7 |
| 1" | 36.5 | 24.3 | 33.4 |
| 1-1/4" | 44.5 | 32.5 | 42.2 |
| 1-1/2" | 50.8 | 38.1 | 48.3 |
| 2" | 65.1 | 49.2 | 60.3 |
| (1) Dimensions in Millimeters. | |||
| (2) Thread in accordance with ASME B1.20.1 | |||
| (3) Dimensions may vary according to the customer's and manufacturer's requirement. |
